New Paper Circ!

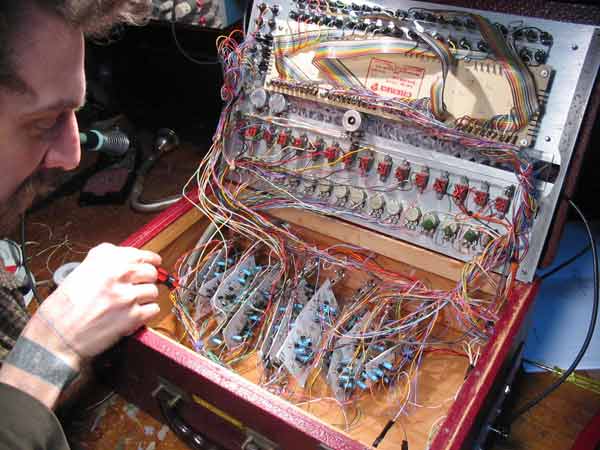

In anticipation of Ieaskul F. Mobenthey releasing the Fourses modules for Eurorack, here are paper circuits to construct three different kinds of this module. It is based on an olde olde concept that you may know from Ciat-Lonbarde in the kittennettik days.
|
Fourses PortDock |
New Paper Circ!
|
the nobsrine is an electronic
musical instrument designed for babies. It uses just two knobs,
and an "on" switch to accomplish a wide range of simple, classic
electronic sounds. It does this by "sampling" the knob at each
turn, and also using the energy of the turn to control the amplitude of
two plus two triangle oscillators. It is for babies of DJs and
noise musicians, who want to introduce their children to strange
sounds, chaos magic, the idea of infinite degrees of relationship
between tones, without the more complicated techniques involved in uper
crust CIAT INSTRUMENTS. |
|
Nobsrine anInst for
|
||
Number 2:There is a new paper circui entitled "old Mr. Grassi". It is built similarly to Lil Sid, but it is bigger and has T2WO speakers. SOUNDS:
|
Download the SHEET,
but actually download the new SHEET that uses NJM2073 instead of LM386 amplifiers,
print
out
the
assembly
sheet
and
build
it with your own components.
Trade money, food, sound object, or interesting plant specimen to: Thanks to Chester, here's a schematic |
Number 4:There is a new paper circuit entitled "Gerassic Organ" which is actually more like a plucked lute in sound.
|
Download the SHEET,
print
out
the
assembly
sheet
and
build
it with your own components.
Trade money, food, sound object, or interesting plant specimen to: Oh, PS, the "trim pots" are most

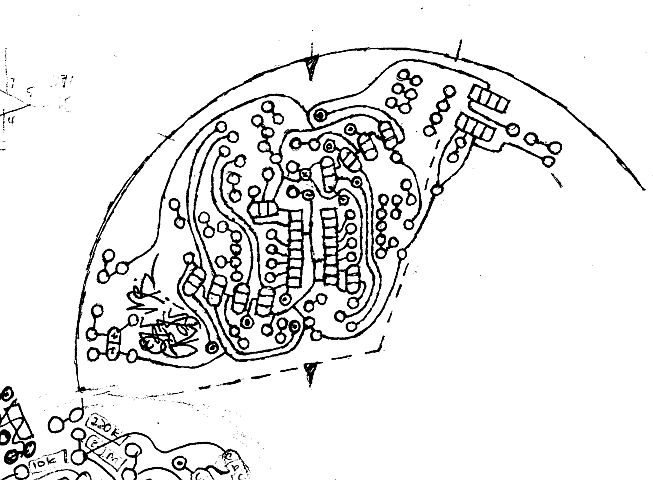

cheapest from mouser- part number 531-pt6kv-100k schematic
from sean |
Thanks
so much for all your work on the paper circuits
and others. I've been having a great time making them! Attached are
some picts of my latest builds: a mr. grassi that I put into an old
goodwill boombox because it already had two speakers! Painted it a nice
acid green. For some reason I keep thinking of him (it) as willie, as
in willie nelson. Must be the "grass" reference... Also a pict of my
Alum Phosphate Cyrstal. I used miniature tactile switches recessed and
layed out in a mostly ergonomic way. 10 buttons: 10 fingers/thumbs. I'm
finding that the value of the "x" resistors plays a big role in the
single button sound, especially with the outer ring of crosses, so I'm
going back in and tweaking things a bit. I may eventually cover this
with leather for an ambrazier "nipple" look.
ALso,
more importantly, I/we have our own paper
circuit that we'd like to share with you as a contribution/tribute.
Rodrigo Constanzo was asking on a listserver if anyone could make him
an 8 step sequencer for use with his fourses/fyrall/etc. I got together
with him and designed this. We'd like to share it with you and offer it
to you to include with your other paper circuits if you see fit.
There's also a couple pictures of my finished prototype, with 12 ga.
copper wire for nodes and a maple branch knob for the speed control.
Thanks again so much for all the great info and music.
Number 3:There is a new paper circui entitled "ALUMINUM PHOSPHATE CRYSTAL SIMULATION". It is built based on concepts from mr grassi and sidrassi. I recommend using one speaker and 10 buttons for the manifestation, each button connecting one node to the speaker. "This paper circuit is a crystal simulation of 5 aluminium atoms bonded to 1 phosphorus atom." Here is a more detailed explanation of the concept
|
A |
|
NUMBER 1I offer an instrument design to you for free, "The Lil Sidrassi: a pentagram of primitive oscillators and a speaker". It is a very touchable bee motorcycle sound maker box. Each one is different because you put custom capacitor values in it. So I would please like you to send me a description of yours and I will make a dictionary. SONUS DE PRE PROTOTYPUS IN MP3 FORMATTO medieval times are coming.
|
Download the instruction manual
, print out the assembly sheet and build it with your own components.
Send money food or sound object to: |
|
|
